The Industrial Infrastructure Behind the CCS Pipeline
When most people hear about the Peak Cluster carbon capture and storage (CCS) project, they picture a buried pipeline quietly transporting carbon dioxide beneath fields and roads. What is often overlooked is that the pipeline itself is only one part of a much larger network of permanent industrial infrastructure.
To operate, the system relies on a network of Above Ground Installations (AGIs), block valve stations (BVSs), access roads, electrical infrastructure, monitoring equipment, security systems and operational compounds. While Peak Cluster’s public messaging has often focused on the underground pipeline, the project’s own consultation documents confirm that substantial permanent above-ground infrastructure would remain visible long after construction is complete.
What Is an AGI?
AGI stands for Above Ground Installation. These are permanent operational facilities required to operate, monitor, maintain and control the pipeline system.
Peak Cluster’s consultation documents explain that AGIs are required to:
- Monitor pipeline performance.
- Measure pressure and flow rates.
- Allow maintenance access.
- Isolate sections of the pipeline.
- Transfer CO₂ into the wider system.
- Support compression and offshore transfer infrastructure.
A CCS pipeline cannot simply be buried and left alone. It requires permanent operational sites where the infrastructure can be monitored, maintained and managed safely throughout the lifetime of the project.
How Many AGIs Are Planned?
The Peak Cluster consultation documents identify multiple AGIs across the route, including:
- Hope AGI
- Tunstead AGI
- Cauldon AGI
- North Feeder AGI
- Central Feeder AGI
- Connection AGI 1
- Connection AGI 2
- Connection AGI 3
- Coastal AGI
The consultation documents also explain that some of the “connection AGIs” are intended to allow future carbon capture projects to connect into the network. This means the infrastructure has the potential for future expansion beyond the facilities currently being proposed.

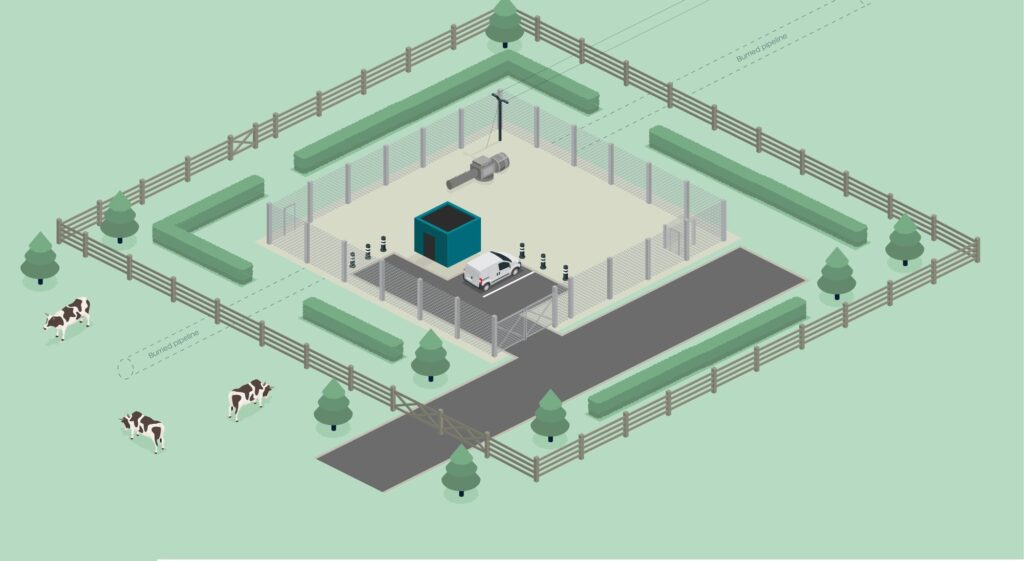

What Is a Block Valve Station?
Block Valve Stations (BVSs) are smaller operational sites located along the pipeline route. Their purpose is to isolate sections of the pipeline during maintenance, emergencies or other operational procedures.
Peak Cluster’s own factsheet states that a typical BVS may include:
- Pipeline valves.
- Pipework.
- Control kiosks.
- Electrical equipment.
- Access roads.
- Security infrastructure.
Although smaller than the major AGIs, they are still permanent industrial structures that would remain within the landscape.
Why Terminology Matters
Many residents have raised concerns that terms such as “AGI” sound highly technical and can underplay the true scale of what is actually being proposed.
In practical terms, some of these facilities would function as:
- Industrial compressor stations.
- Pipeline operational compounds.
- Permanent utility infrastructure.
- Industrial processing facilities.
Using clearer language helps communities understand the scale, appearance and long-term presence of the infrastructure being proposed.
The Coastal AGI / Compressor Station
The proposed Coastal AGI appears to be the largest and most significant above-ground installation associated with the project. Peak Cluster’s consultation documents confirm that the Coastal AGI would:
- Compress CO₂ before offshore transport.
- Monitor and meter CO₂ flows.
- Connect the onshore pipeline to offshore infrastructure.
- Operate continuously.
- Include permanent operational and security staffing.

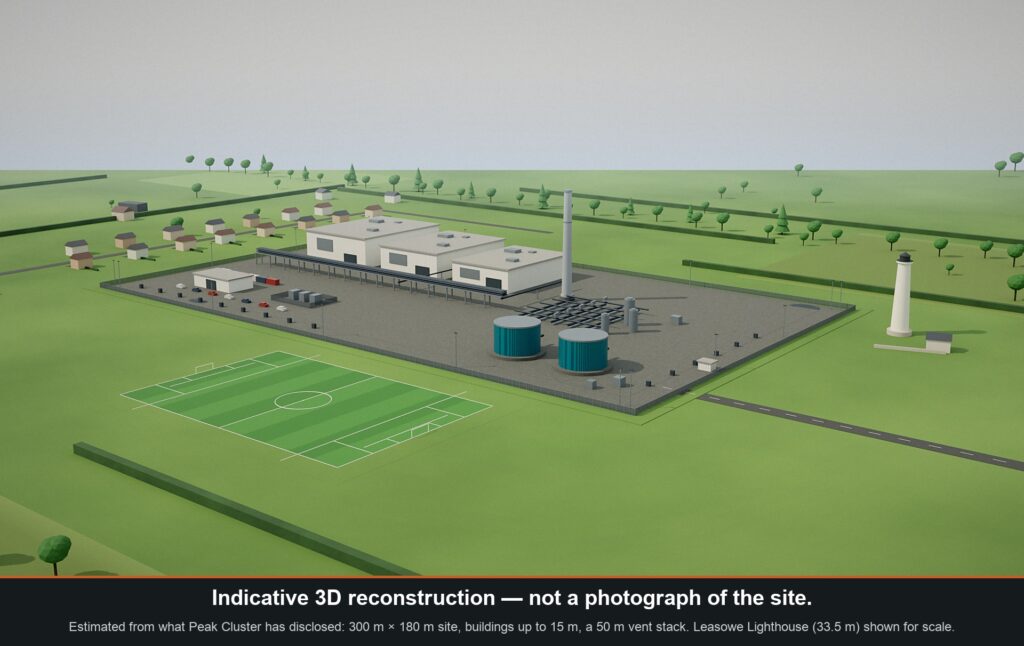

The official factsheet states that the Coastal AGI could occupy a site measuring up to 300 metres by 180 metres. It also states that:
- Most structures could be up to 15 metres high.
- A vent stack of up to 50 metres in height may be required.
- The site would include lighting, roads, parking and industrial equipment.
- The site would contain significant compressor and mechanical infrastructure.
The consultation material also explains that the Coastal AGI may be located within either the “landfall zone” or the “inland zone”, with the exact location still under consideration.
The Vent Stack
One of the most significant features identified within Peak Cluster’s consultation material is the proposed vent stack. The official factsheet states that this structure could be up to 50 metres high and would be used during maintenance operations or emergency venting procedures.
Although Peak Cluster states that the vent stack would not operate continuously, its inclusion demonstrates the industrial scale of the infrastructure associated with the project.
Landscape and Rural Impact
For many residents, one of the biggest concerns is location. Much of the proposed infrastructure is planned within rural, agricultural or semi-rural landscapes rather than within existing industrial estates or brownfield sites.
While buried sections of the pipeline may eventually be restored following construction, the AGIs, BVSs and compressor infrastructure would remain as permanent operational features. For many communities, the issue is not simply the disruption caused during construction, but the long-term industrialisation of what is currently open countryside.
Future Expansion
Peak Cluster’s consultation material explicitly identifies some infrastructure as providing the ability for future carbon capture projects to connect into the network. The official diagrams also identify “space for future expansion” within parts of the infrastructure layout.
Residents may therefore reasonably question whether the current proposals represent the full long-term extent of the industrial development associated with the project.
Conclusion
The Peak Cluster project is about far more than a buried pipeline. The consultation documents describe a substantial network of permanent industrial infrastructure, including AGIs, block valve stations, operational compounds, electrical infrastructure, compressor equipment, maintenance access roads and a large coastal compression facility.
As the project moves through consultation, it is essential that communities are given clear, transparent and easily understood information about the scale, appearance and long-term operation of the infrastructure being proposed, so they can make informed decisions about its impact on their local area.
